Polypropylene Pump Manufacturers

Brief of Products

Polypropylene Pump Manufacturers

Moniba Pumps is one of the established and developed Polypropylene Pump Manufacturers in India that offers an exceptional range of pumps for the cients. Polypropylene Pumps are extraordinarily planned for very destructive synthetic compounds in which metal pumps are not prescribed or in its cost is higher. The PP-arrangement pumps configuration are single piece shaped polypropylene volute packaging with semi-open impeller and packaging spread to guarantee a smooth running execution against erosion.

Moniba Anand Electricals Pvt. Ltd. has developed Non-mettalic Centrifugal Pumps to replace high cost mettalic Pumps, with the best hydraulic design, resulting in maximum efficiency. This has been achieved by extracting major components in injection moulding dies, whereby the finishing & the dimensions are consistent. To further prevent any leakage, a mechanical seal of Teflon below, is used in all our Non-mettalic Pumps.

Being one of the leading Polypropylene Pump Manufacturers we use high allumina fired sleeve that secures shaft to any erosion and scraped spot. The GFT or Sic Vs. Fired PTFE underneath Mechanical seal keeps the spillage from the pumps. The Cast Iron are heavily oil greased to provide greatest quality to pump. The pumps are additionally accessible in Mon-square form with minimal plan.

Moniba Pumps being distinguished Polypropylene Pump Manufacturers in India produce these pumps in variety of specifications to suffice the diverse requirements of these industries. Polypropylene is the most widely used plastic by us and is also usually known by it's chemical name, PP. Polypropylene Plastic is known for its wide ranging chemical resistance. Polypropylene Pumps are commonly used for chemicals such as Fresh Water, Salt Water, DI Water, Citric Acid, Fluosilicic Acid, Formaldehyde, Muratic Acid, Nitric Acid, Phosphoric Acid, Potassium Hydroxide, Potassium Permanganate, Sodium Hydroxide, Sulfuric Acid, and many more.

The pumps are also used in scrubbing of corrosive gases and as scrubber pump in various chemical industries, in pickling process in Steel Rolling Mills, Acid circulation in electro plating industries, decaling in boilers, heat exchangers etc. Our main aim is to accomplish most extreme level of clients and this is finished by offering Polypropylene Pumps according to the market request. Being the most astounded and recommended Polypropylene Pump Manufacturers in India is a title of which we are proud of and also a level that needs to be maintained. The whole scope of pumps offered by us is fabricated with the guide of most recent innovation and refined machines.

We guarantee that the pumps offered by us take into account the requirements of profluent treatment plants, water treatment plants, drugs and pharmaceuticals, manure plants and others. We make Polypropylene Pumps accessible to the clients at exceedingly aggressive costs. We are considered one of the finest PP Pump Manufacturers in India in the country and are also bound to become a successful and prominent Polypropylene Pump Exporter in India in the near future.

Advantages

  • All wetted parts are offered in polypropylene having good resistance to erosion for slurry service.
  • Impeller radial semi open robust construction injection molded with back vanes to minimize axial thrust for increased bearing life and with         ss insert for easy removal
  • Shaft sleeve is of ceramic, Hastelloy-B, Alloy 20, Monel, Titanium to suit various applications.
  • Pump can be supplied with priming chamber for selfpriming application.

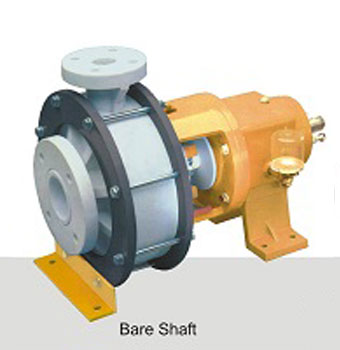

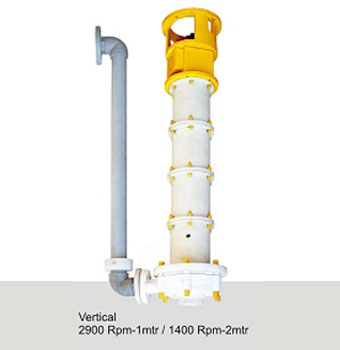

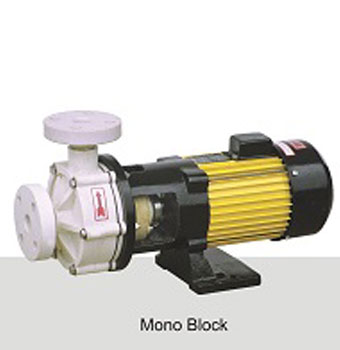

  • Pumps are available with different mounting like monoblock, horizontal bare pump, vertical pump
  • All non pp parts are coated with anti corrosive paints to protect from corrosive atmosphere
  • Available with externally mounted mechanical Seal of ceramic/GFT, or silicon face with teflon as per application.
  • External Cooling arrangement provided in pump for enhancement of mechanical Seal life

Range

Series Max flow in m3/hr Max head in mtr
PPA 18 25
PPB 38 31
PPC 50 51
PPD 400 100
Higher Flow pumps available on request.

This parameters depend on size of pump

Temperature Max 90oC
Power Up to 25 hp
Solid % Max 30%
Soft Solid Size Max 3 MM

Anti Rotation is not permitted, impeller will come out and will damage casing

Perforamance

 MONIBA ANAND ELECTRICALS PVT LTD
Sr No. Model Graph no. Q= m3/hr   &    H=meter Shut off head in meter
1 P-22-100H PPN1 Q 0 1 2 3 4 5 6 14
      H 14 13.5 13 12.5 12 10 7
2 P-44-120H PPN2 Q 0 5 7 10 12 15 17 18
      H 18 16 15.5 15 13 10 7
3 P-34-130H PPN3 Q 0 5 7 10 12 15 18 25
      H 25 22 20.5 18 16 14 11
4 P-44-150H PPN4 Q 0 5 7 10 12 15 18 25
      H 25 20 18 16.5 15 14 10
5 P-47-160H PPN5 Q 0 5 10 15 20 25 32 33
      H 33 31 30 27 23.5 20.5 17
6 P-44-190L PPN6 Q 0 5 10 15 20 25 27 14
      H 14 13 12.5 12 10.6 11 10
7 P-47-210L PPN7 Q 0 7 12 17 23 28 34 15
      H 15 13.6 12.5 11.6 11 10 7
8 P-57-210L PPN8 Q 0 10 20 30 40 50 52 16
      H 16 15 13.7 12 11 7.6 7
9 P-57-170H PPN9 Q 0 10 20 30 40 50 60 37
      H 37 35 33 30 27 22 15.5
10 P-45-190H PPN10 Q 0 5 10 20 30 40 44 50
      H 50 47 45 41 37 30 24
11 P-55-220L PPN11 Q 0 5 11 16 22 31 40 18
      H 18 17 16 15.5 15 13 11
12 P-55-210H PPN12 Q 0 10 20 30 40 50 60 61
      H 61 60 58 55 51 48 42
13 P-57-185H PPN13 Q 0 20 40 60 80 100 105 48
      H 48 46 45 41 38 32 30
14 P-81-265L PPN14 Q 0 20 40 60 80 100 110 25
      H 25 22 20 18 15 10 6

Note* - Higher capacity pumps available on request.

PP Chemical Compatibility Chart

Chemical Formula Polypropylene
Acetamide (Acetic Acid Amide)  CH3CONH2 A
Acetic Acid _ 20%   B
Acetophenone (Phenyl Methyl Ketone)  C6H5COCH3 A  70°F
Acrylonitrile (Vinyl Cyanide) CH2=CHCN B
Adipic Acid (1,4-Butanedicarboxylic Acid)  HOOC(CH2)4 (COOH ) A
Alcohols R-OH A
Allyl Chloride (3-Chloropropene) CH2=CHCH2CI A 70°F
Alum (Aluminum Potassium Sulfate Dodecahydrate)  KAI(SO4)2  &1&2H2O A
Aluminum Acetate (Burow's Solution)    A
Aluminum Ammonium Sulfate (Alum)  AINH4(SO4)2 A
Aluminum Chloride AlCl3 A
Aluminum Fluoride AlF3 A
Aluminum Hydroxide (Alumina Trihydrate)  AI(OH)3 A
Aluminum Nitrate Al(NO3)3 &9H2O A
Aluminum Potassium Sulfate (Potash Alum)  KAl(SO4)2 A
Aluminum Sulfate (Cake Alum)  Al2(SO4)3 A
Amines R-NH2 B
Ammonia Anhydrous, Liquid NH3 A
Ammonium Bifluoride _ 10% NH4HF2 A
Ammonium Carbonate (NH4)2CO3 A
Ammonium Chloride (Sal Ammoniac)  NH4Cl A
Ammonium Fluoride NH4F B
Ammonium Hydroxide (Aqua Ammonia)  NH4OH A
Ammonium Metaphosphate   A
Ammonium Nitrate NH4NO3 A
Ammonium Nitrite NH4NO2 A  70°F
Ammonium Persulfate (NH4)2S2O8 A
Ammonium Phosphate, Di-Basic (NH4)2HPO4 A
Ammonium Phosphate, Monobasic (NH4)H2PO4 A
Ammonium Phosphate, Tri-Basic (NH4)3PO4&3H2O A
Ammonium Sulfate (NH4)2SO4 A
Ammonium Sulfite (NH4)2SO3H2O A
Amyl (1-Pentanol) C4H9CH2OH B
Amyl Alcohol (Pentyl Alcohol) CH3(CH2)4OH A
Amyl Chloronaphthalene   A
Aniline (Aniline Oil) (Amino Benzene)  C6H5NH2 A
Antimony Trichloride SbCI3 A
Arsenic Acid AsH3O4 A
Asphalt Hydrocarbons A
Barium Carbonate BaCO3 A
Barium Chloride Dihydrate BaCl2 &2H2O A
Barium Hydroxide (Barium Hydrate)  Ba(OH)2 A
Barium Nitrate Ba(NO3)2 A
Barium Sulfate (Blanc Fixe) BaSO4 A
Barium Sulfide BaS A
Beer Water, carbonate A 75°F
Beet Sugar Liquors (Sucrose)   A
Benzyl (Phenylcarbinol) C6H5CH2OH A
Benzyl Alcohol C6H5CH2OH A
Borax (Sodium Borate) B4Na2O7 A
Boric Acid (Boracic Acid) H3BO3 A
Brine (Sodium Chloride) Salt water A
Buttermilk Fats, water A
Butyl (Butanol) C3H7CH2OH B
Butyl Alcohol (Butanol) CH3(CH2)3OH A
Butyric Acid CH3(CH2)2CO2H A
Calcium Bisulfite Ca(HSO3)2 A
Calcium Carbonate (Chalk) CaCO3 A
Calcium Chlorate Ca(ClO3)2 A
Calcium Chloride (Brine) CaCl2 &6H2O A
Calcium Hydroxide (Slaked Lime) Ca(OH)2 A
Calcium Hypochlorite 20% (Calcium Oxichloride)  Ca(CIO)2 A
Calcium Nitrate Ca(NO3)2 A
Calcium Sulfate (Gypsum) CaSO4 A
Calcium Sulfide CaS A 120°F
Calgon (NaPO3)6 A
Cane Sugar Liquors Sucrose, water A
Carbon Dioxide (Carbonic Acid Gas) CO2 A
Carbon Monoxide CO A
Carbonated Beverages CO2/H2O A
Carbonic Acid (liquid) H2CO3 A
Catsup (Ketchup)   A
Cellosolve (Glycol Ethers) HOCH2CH2OR A  100°F
Chlorinated Water   B
Chloroacetic Acid (Monochloroacetic Acid)  CICH2COOH A
Chocolate syrup Corn syrup, water, sugar A
Citric Acid C6H8O7 H2O B
Citric Oils Citric acid esters A
Clorox   B
Cobalt Chloride CoCI2&6H2O A
Coffee Fatty oils, acids, ellulose, water A
Copper Chloride CuCl2&2H2O A
Copper Cyanide CuCN A
Copper Nitrate Hexahydrate Cu(NO3)2&6H2O A
Copper Sulfate (Blue Copperas) CuSO4&5H2O A
Corn Oil (Maize oil) Glycerides of fatty acids A
Cotton Seed Oil   A
Cream   A
Cyclohexanol C6H11OH B
Decane CH3(CH2)8CH3 A  70°F
Denatured Alcohol Ethanol and denaturant A
Detergent Solutions   A
Dextrose C6H12O6 A
Diesel Oil (Fuel ASTM #2) Hydrocarbons B
Diethanol Amine (HOCH2CH2)2NH A
Diethyl Amine (CH3CH2)2NH A
Diethyl Sebecate C14H26O4 A 120°F
Diethylene Glycol (DEG) HOCH2CH2OCH2CH2OH A
Diisobutylene [HC=C(CH3)2]2 A
Dipropylene Glycol (C3H6OH)2O A
Epichlorohydrin C3H5CIO A
Epsom Salts  (Magnesium Sulfate) MgSO4  &7H2O A
Ethyl (Ethanol) CH3CH2OH A 100°F
Ethyl Acrylate CH2CHCO2CH2CH3 B
Ethyl Alcohol (Ethanol) CH3CH2OH A  100°F
Ethyl Benzoate C6H5CO2CH2CH3 B
Ethyl Butyrate CH3CH2CH2 CO2C2H5 B
Ethylene Diamine (CH2)2(NH2)2 A
Ethylene Glycol (Ethylene Alcohol, Glycol)  (CH2OH)2 A 120°F
Fatty Acids CnH2n+1COOH B
Ferric Chloride FeCI3 A
Ferric Nitrate Fe(NO3)3 A
Ferric Sulfate Fe2(SO4)3 A
Ferrous Chloride FeCI2 A
Ferrous Sulfate FeSO4 A
Fluoboric Acid HBF4 A
Fluosilicic Acid (Sand Acid) H2SiF6 A
Formaldehyde (Formalin) HCHO A
Formic Acid HCOOH A 70°F
Freon 11 (Trichlorofluoromethane) CCI3F B
Fruit Juices Water, sucrose A
Gallic Acid C6H(OH)3 COOH A 70°F
Gelatin Water soluble proteins A
Glucose (Corn Syrup) C6H12O6 A
Glue   A
Glycerol (Glycerine) C3H8O3 A
Glycolic Acid HOCH2COOH A
Glycols   A
Grape Juice Water, sucrose A
Green Sulfate Liquor   A
Heptanal CH3(CH2)5CHO A
Hexyl (1-Hexanol) C5H11CH2OH A 70°F
Honey   A
Hydrobromic Acid HBr B
Hydrochloric Acid 10% (Muratic) HCI A
Hydrochloric Acid 20% (Muratic) HCI A
Hydrochloric Acid 30% (Conc.) HCI B
Hydrocyanic Acid (Formonitrile) HCN A
Hydrogen Fluoride _ Anhydrous HF A
Hydrogen Peroxide _ 10% H2O2 A
Hydrogen Peroxide _ 3% H2O2 A
Hydrogen Peroxide _ 30% H2O2 A
Hydrogen Sulfide (Wet) H2S A
Hypochlorous Acid HCIO A
Iodine I2 A
Isobutyl Alcohol (Isobutanol) (CH3)2 CHCH2OH  A
Isooctane (Trimethylpentane)  C8H18 A
Isopropyl (2-Propanol) H3CCH(OH)CH3 A
Isopropyl Acetate CH3COOCH(CH3)2 B
Isopropyl Alcohol (Isopropanol)  CH3CH(OH)CH3 A
Lactic Acid CH3CHOHCOOH A
Lard (Lard Oil) Olein, stearin A
Latex Rubber emulsion A
Lauryl Alcohol (n-Dodecanol)  CH3(CH2)10  CH2OH  A
Lead Chloride PbCI2 A
Lead Nitrate Pb(NO3)2 A
Lead Sulfamate   A
Lime Bleach   B
Lime Sulfur CaS+CaSO4 A
Linoleic Acid C18H32O2 A
Linseed Oil (Flaxseed Oil)  Glycerides A
Lye (Potassium Hydroxide) KOH A
Magnesium Carbonate MgCO3 A
Magnesium Chloride MgCI2O A
Magnesium Hydroxide (Milk of Magnesia)  Mg(OH)2 A
Magnesium Nitrate Mg(NO3)2 &6H2O A
Magnesium Sulfate (Epsom Salts)  MgSO4&7H2O A
Maleic Acid (CHCOOH)2 A
Mayonnaise Water, fats, oils A
Mercuric Chloride HgCI2 A
Mercuric Cyanide Hg(CN)2 A
Mercurous Nitrate Hg(NO3)2 &2H2O A
Mercury Hg A
Methane CH4 B
Methyl (Methanol) CH3OH A 120°F
Methyl Alcohol (Methanol) CH3OH A
Methyl Cellosolve CH3OCH2 CH2OH A
Methylamine CH3NH2 A
Milk   A
Mineral Oil (Petroleum) Hydrocarbons B
Molasses   A
Mustard   A
N,N-Dimethyl Formamide (DMF) HCON(CH3)2 A 120°F
Naphthalene (Tar Camphor) C10H8 A
Nickel Acetate Ni(CH3CO2)2 A
Nickel Chloride NiCI2 A
Nickel Nitrate Ni(NO3)2&6H2O A
Nickel Sulfate NiSO4 A
Nitric Acid _ 10% HNO3 A
Nitric Acid _ 25% HNO3 A
Nitric Acid _ 35% HNO3 B
Nitrobenzene C6H5NO2 B
o-Dichlorobenzene C6H4CI2 B
Oleic Acid (Red Oil) C18H34O2 B
Olive Oil Mixed glycerides of acids A
Oxalic Acid (COOH)2 A
Palmitic Acid CH3(CH2)14  COOH A
Paraffins (Paraffin Oil) Hydrocarbons A
Peanut Oil Glycerides of fatty acids A 70°F
Phosphoric Acid (Conc.) H3PO4 A 120°F
Phosphoric Acid _ 10% H3PO4 A 120°F
Phosphoric Acid _ 20% H3PO4 A 120°F
Phosphoric Acid _ 50% H3PO4 A 120°F
Photographic Developer   A
Picric Acid (Carbazotic Acid) (NO2)3 C6H2OH B
Plating Solution _ Chrome   A 131°F
Potassium Acetate CH3CO2K A
Potassium Bicarbonate KHCO3 A
Potassium Bisulfate KHSO4 A
Potassium Bromide KBr A
Potassium Carbonate (Potash) K2CO3 A
Potassium Chlorate KCIO3 A
Potassium Chloride KCI A
Potassium Chromate K2CrO4 A
Potassium Copper Cyanide K3[Cu(CN)4] A
Potassium Cyanide KCN A
Potassium Dichromate K2Cr2O7 A
Potassium Hydroxide (Caustic Potash) (Lye)  KOH A
Potassium Iodide KI A
Potassium Nitrate (Saltpeter)  KNO3 A
Potassium Nitrite KNO2 A
Potassium Permanganate (Purple Salt)  KMnO4 B
Potassium Sulfate K2SO4 A
Potassium Sulfide K2S A
Potassium Sulfite K2SO32H2O A
Propyl (Propanol) C2H5CH2OH A
Propyl Alcohol (1-Propanol) CH3CH2CH2OH A
Propylene Glycol (Methyl Glycol)  C3H6(OH)2 A
Pyroligneous Acid (Wood Vinegar)   A
Rosin C20H30O2 A
Rust Inhibitors   A
Sal Ammoniac (Ammonium Chloride)  NH4CI A
Salad Dressing Fats, oils, water A
Salicylic Acid   A
Salt Water (Brine) NaCl/H2O A
Sea Water (Brine)    A
Sewage   A
Silicone Oils (Versilube etc.)  [(CH3)2SiO2)]n A
Silver Cyanide AgCN A
Silver Nitrate AgNO3 A
Soap Solutions Salt of fatty acid in H2O A
Sodium Acetate CH3COONa A
Sodium Aluminate Na2Al2O4 A
Sodium Bicarbonate (Baking Soda)  NaHCO3 A
Sodium Bisulfite (Cream of Tartar)  NaHSO3 A
Sodium Bisulfite (Niter Cake)  NaHSO4 A
Sodium Borate Na2B4O7 A 140°F
Sodium Bromide NaBr A
Sodium Chlorate NaCIO3 A
Sodium Chloride (Table Salt)  NaCI A
Sodium Chromate Na2CrO4 A
Sodium Cyanide NaCN A
Sodium Dichromate (Sodium Bichromate)  Na2Cr2O7&2H2O A
Sodium Fluoride NaF A
Sodium Hydroxide (Caustic Soda) (Lye)  NaOH A
Sodium Metasilicate Na2SiO3 A
Sodium Nitrate (Chile Saltpeter)  NaNO3 A
Sodium Nitrite NaNO2 A
Sodium Perborate NaBO3 A
Sodium Peroxide (Sodium Dioxide)  Na2O2 B
Sodium Phosphate (Tribasic) (TSP)  Na3PO4 A
Sodium Silicates (Water Glass)  Na2O SiO2 A
Sodium Sulfate (Salt Cake) (Thenardite)  Na2SO4 A
Sodium Sulfide (Pentahydrate)  Na2S &5H2O A
Sodium Sulfite Na2SO3 A
Sodium Thiosulfate (Antichlor)  Na2S2O3 A
Soybean Oil Triclycerides of acids B
Stannic Chloride (Tin Chloride) SnCI4 A
Stannous Chloride (Tin Chloride)  SnCI2 A
Starch C6H10O5 A
Stearic Acid CH3(CH2)16CO2H A
Stoddard Solvent Petroleum distillate A
Sulfur S A
Sulfur Dioxide SO2 A
Sulfuric Acid 10% H2SO4 A
Sulfuric Acid 25% H2SO4 A
Sulfuric Acid 50% H2SO4 A
Sulfuric Acid 60% H2SO4 A
Sulfuric Acid 75% H2SO4 A
Sulfurous Acid H2SO3 A
Tall Oil (Liquid Rosin) Rosin acids A
Tallow Fat from cattle, sheep B
Tannic Acid C76H52O46 A
Tanning Liquors Tannic acid A
Tar, Bituminous (Coal tar, pitch) Mixture of aromatic & phenolic hydrocarbons A
Tartaric Acid C4H6O6 A
Tertiary Butyl Alcohol (CH3)3COH B
Tetraethyl Lead Pb(C2H5)4 A
Thionyl Chloride SOCI2 B
Titanium Tetrachloride TiCI4 B
Tomato Pulp & Juice   A
Transformer Oil (Petroleum) Hydrocarbons B
Triallyl Phosphate P(OC3H5)3 B
Trichloroacetic Acid (TCA) CCI3COOH B
Tricresyl Phosphate (Lindol) (TCP) (CH3C6H4O)3 PO  B
Triethanol Amine (TEA) N(C2H4OH)3 A
Triethylene Glycol (TEG) (CH2OCH2CH2OH)2 A
Tung Oil (Wood Oil) Fatty acids A
Urea (Carbamide) CO(NH2)2 A
Urine   A
Varnish (Oil, gum resins, oil of turpentine)   A
Vinegar Dilute acetic acid A
Vinyl Acetate CH3COOCHCH2 B
Water, Distilled (Also Deionized) H2O A
Water, Fresh H2O A
Whiskey Ethanol, esters, acids A
White Sulfate Liquor   A
Wines   A
Zinc Acetate Zn(C2H3O2)2 A
Zinc Chloride ZnCI2 A
Zinc Sulfate ZnSO4 A

Accessories

  • Base Frame
  • Coupling
  • Coupling Guard
  • Foundation bolt
  • Strainer
